Mobile Broadband Interface

This inventory class reads out a mobile broadband interface. In addition, data from a SIM card is also collected when it is plugged in and unlocked. Internally PC-SysInfo uses the Microsoft Broadband API.

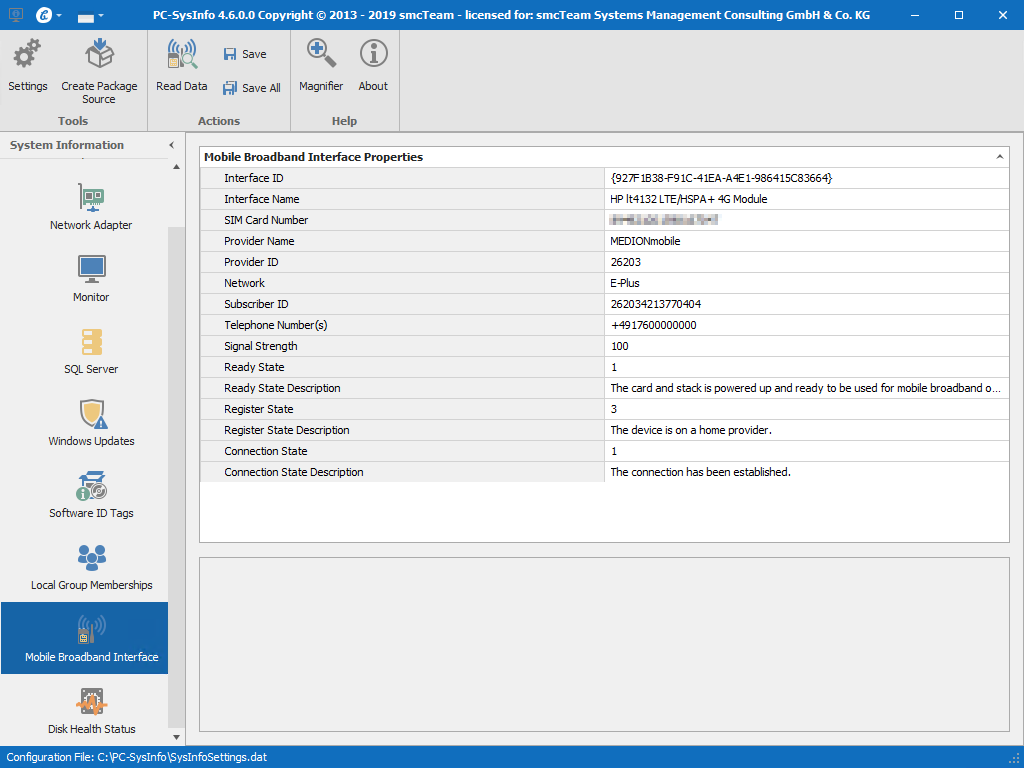

First, select the inventory class Mobile Broadband Interface in the area of System Information on the left side.

The following table describes the individual controls of the main menu and their functions.

Within the Skin Gallery, different skins and color palettes can be selected to adjust the look and feel to your preferences. The corresponding controls are located in the header section of the application at the top left.

The Button Settings opens the configuration settings.

Create Package Source copies the files that are needed when using PC-SysInfo in connection with a systems management environment. For example, those provided files can be used to create a package. This option is only available while holding a valid license.

The button Read Data starts the scan to get the mobile broadband interfaces properties.

With the Buttons Save or Save All, the results of the selected class or the results of all inventory classes can be stored1 in the WMI repository.

Magnifier displays a magnifying glass that can be used to zoom in on any portion of the screen.

About displays further information about PC-SysInfo.

Switching inventory classes on and off, as well as customizing the name space and the WMI class, is described in the chapter configuration.

The following table describes the properties of the inventory class Mobile Broadband Interface.

Name Type Key Array Description
ConnectionState String The description of the connection state.
InterfaceID String The ID of the mobile broadband interface.
InterfaceName String The Name of the mobile broadband interface.
MbnConnectionState SInt32

The connection state can have the following values:

0 The connection state is unknown.
1 The connection has been established.
2 The device is establishing the connection.
3 There is no connection.
4 The device is in the process of disconnection.
MbnReadyState SInt32

The ready state can have the following values:

0 The mobile broadband device stack is turned off.
1 The card and stack is powered up and ready to be used for mobile broadband operations.
2 The SIM is not inserted.
3 The SIM is invalid (PIN Unblock Key retrials have exceeded the limit).
4 General device failure.
5 The subscription is not activated.
6 The device is locked by a PIN or password which is preventing the device from initializing and registering onto the network.
7 The device is blocked by a PIN or password which is preventing the device from initializing and registering onto the network.
MbnRegisterState SInt32

The register state can have the following values:

0 The device registration state is unknown. This state may be set upon failure of registration mode change requests.
1 The device is not registered and not searching for a provider.
2 The device is not registered and is searching for a provider.
3 The device is on a home provider.
4 The device is on a roaming partner.
5 The device is on a roaming partner.
6 The device was denied registration. Emergency voice calls may be made. This applies to voice and not data.
Network String The network. This can be D1, D2, E-Plus etc. Valid values will only be displayed if the provider list also contains valid values.
ProviderID String The ID of the provider.
ProviderName String The name of the provider.
ReadyState String The description of the ready state.
RegisterState String The description of the register state.
SignalStrength SInt32 The signal strength in percent.
SIMNumber String The number of the SIM card.
SubscriperID String For GSM device this represents the International Mobile Equipment Identity (IMSI) string (up to 15 digits). For CDMA device this represents the Mobile Identification Number (MIN) string or the International Roaming MIN (IRM) string (10 digits).
TelephoneNumbers String The telephone numbers as array.
TelephoneNumbersToString String A string of comma-separated telephone numbers.
